Specifications
| Status |
Discontinued |
| No. of Lines |
2 |
| Common Mode Impedance |
1400 Ω typ at 100MHz |
| Common Mode Inductance |
15 uH min |
| Case Size (mm) |
9.5x5.5 |
| DC Resistance (max) |
60 mΩ |
| Rated Current (max) |
1.5 A |
| Rated Voltage (max) |
50 V |
| Operating Temp. Range |
-25 to +105 ℃
(Including-self-generated heat) |
| Insulation Resistance (min) |
100 MΩ |
| Dimension A |
Max 9.5 mm |
| Dimension B |
Max 5.5 mm |
| Dimension C |
Max 10 mm |
| RoHS Compliance (10 subst.) |
Yes |
| IEC62474 (Ver. D28.00) Compliance |
No(*) |
| Soldering |
Wave |
| Standard Quantity |
Bulk 1000pcs |
|
Appearance
|
Features
Highly reliable, compact and lightweight
Easily inserted into the PCB
|
Main Applications
TLF Type :
Countermeasure for noise in the low-frequency (AM) broad-casting band
Shields against radiated emissions in the broadcasting frequency for multi-functional
telephone sets. PBXs, faxes, etc.
|
|
Document
|
Simulation data
|
Links
|
RoHS and REACH Certificate of Compliance
|

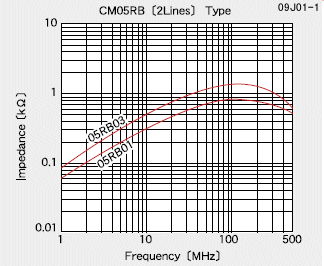

Impedance-Frequency Characteristics
|
(*) Brominated flame retardants (other than PBDEs, PBBs, HBCDDs) are intentionally used. Bromine (in homogeneous materials) in this product exceeds 1000 ppm.
