FERRITE BEAD INDUCTORS  [Leaded Normal Mode Choke Coils for DC and Signal Lines]

Specifications

Status Discontinued
Impedance 1000 Ω typ
Z Measuring Frequency 150 MHz
Case Size (mm) 6.0x15.2
Rated Current (max) 3 A
DC Resistance (max) 50 mΩ
Operating Temp. Range -25 to +105 ℃
(Including-self-generated heat)
Dimension D φ6.0 ±0.2 mm
Dimension L Max 15.2 mm
RoHS Compliance (10 subst.) Yes
Soldering Wave
Standard Quantity Bulk 250pcs
Quantity
Previous Part Number :
Distributor Quantity Buy
Powered by netComponents

Appearance

Features

Use of high loss ferrite materials for excellent high frequency noise absorption

High impedance for normal mode applications

05 RD type available in taping for automatic insertion

06 BT type is designed for high current applications (3A)

Main Applications

Absorption of high frequency noise from digital equipment data lines

Document

Spec Sheet
Dimensions(Outline, Land Patterns, and so on)
Reliability Data
Packaging
Precautions
Notice for TAIYO YUDEN products


Simulation data

Links

Conditions for measuring S-parameter
Management System Certification Status(ISO, IATF)
Inquiries


RoHS and REACH Certificate of Compliance

RoHS(Product)
(*) Chlorine resulting from bisphenol A type epoxy resin exceeds 1000ppm. ; Since chlorine is not from source of the CFR / PVC or PVC copolymers, we apply "Yes" to this product by the definition of low-halogen, JS-709A.
Please contact our sales staff when ordering or inquiring the details about products on our website.

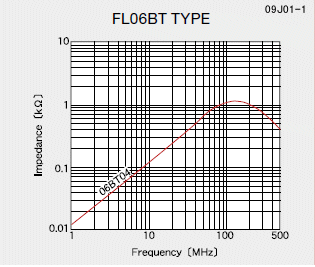

Impedance-Frequency Characteristics
