제품 사양
| Status |
Discontinued |
| Inductance |
3.9 uH ± 5 % |
| Case Size (mm) |
2.4x3.6 |
| Rated Current (max) |
0.36 A |
| DC Resistance (max) |
0.63 Ω |
| Q (min) |
40 |
| Self Resonant Frequency (min) |
35 MHz |
| Operating Temp. Range |
-25 to +105 ℃
(Including-self-generated heat) |
Temperature characteristic
(Inductance change) |
± 5 % |
| Dimension D |
Max φ2.4 mm |
| Dimension L |
Max 3.6 mm |
| Dimension d |
φ0.45 ±0.05 mm |
| Measuring Frequency |
7.96 MHz |
| RoHS Compliance (10 subst.) |
Yes |
| Soldering |
Wave |
| Standard Quantity |
Taping 2000pcs |
Quantity
이전품번 :
| Distributor |
Quantity |
Buy |
![]()
|
|
|
|
외관
|
특징
Extremely reliable inductors that are ideal for automatic insertion
Highly efficient automated production processes can provide high
quality inductors in large volumes
Wide selection of configurations including axial leaded, formed radial leads
and bulk products to meet most manufacturing needs
|
주요 용도
Use for TVs, DVD, audio equipment, communication instrument,
tuner, and general electrical instrument
|
|
제품 자료
|
시뮬레이션 데이터
|
링크
|
제품환경증명서
|
Please contact our sales staff when ordering or inquiring the details about products on our website.
|

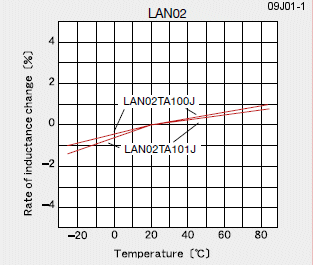

Temperature Characteristics

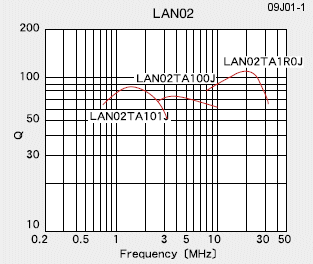

Q-Frequency Characteristics
|
