제품 사양
| Status |
Discontinued |
| Common Mode Inductance |
68 mH min |
| Case Size (mm) |
17.0x22.0 |
| DC Resistance (max) |
6.5 Ω |
| Rated Current (max) |
0.2 A |
| Rated Voltage (max) |
AC250 V |
| Operating Temp. Range |
-25 to +105 ℃
(Including-self-generated heat) |
| Insulation Resistance (min) |
100 MΩ |
| Dimension A |
Max 17.0 mm |
| Dimension B |
Max 22.0 mm |
| Dimension C |
Max 23.0 mm |
| RoHS Compliance (10 subst.) |
Yes |
| Soldering |
Wave |
| Standard Quantity |
Bulk 500pcs |
Quantity
이전품번 :
| Distributor |
Quantity |
Buy |
![]()
|
|
|
|
외관
|
특징
TLH10UA(B)TYPE : Ordinary configuration (Hybrid choke)
TLF9UA(H)K1 TYPE : Small-sized configuration
|
주요 용도
As a preventive measure against noise terminal voltage or power supply noise in
TV's SW power supplies, NC machines, computer systems, peripheral units,
measuring instruments, and controllers
|
|
제품 자료
|
시뮬레이션 데이터
|
링크
|
제품환경증명서
|
(*) Brominated flame retardants (other than PBDEs, PBBs, HBCDDs) are intentionally used. Bromine (in homogeneous materials) in this product exceeds 1000 ppm.
Please contact our sales staff when ordering or inquiring the details about products on our website.
|

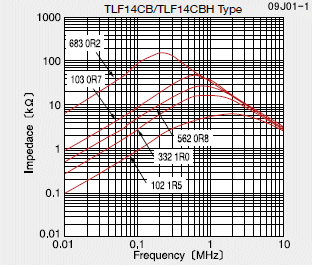

Impedance-Frequency Characteristics
|
