제품 사양
| Status |
Phaseout |
| No. of Lines |
2 |
| Impedance (reference values) (min) |
150 kΩ at 500kHz |
| Common Mode Inductance |
20 mH +100/-10% |
| Case Size (mm) |
11.0x17.0 |
| DC Resistance (max) |
6.5 Ω |
| Rated Current (max) |
0.18 A |
| Rated Voltage (max) |
50 V |
| Operating Temp. Range |
-25 to +105 ℃
(Including-self-generated heat) |
| Insulation Resistance (min) |
100 MΩ |
| Dimension A |
Max 11.0 mm |
| Dimension B |
Max 17.0 mm |
| Dimension C |
Max 16.0 mm |
| RoHS Compliance (10 subst.) |
Yes |
| REACH Compliance (251 subst.) |
Yes |
| Soldering |
Wave |
| Standard Quantity |
Bulk 500pcs |
Quantity
이전품번 :
| Distributor |
Quantity |
Buy |
![]()
|
|
|
|
외관
|
특징
Highly reliable, compact and lightweight
Easily inserted into the PCB
|
주요 용도
TLF Type :
Countermeasure for noise in the low-frequency (AM) broad-casting band
Shields against radiated emissions in the broadcasting frequency for multi-functional
telephone sets. PBXs, faxes, etc.
|
|
제품 자료
|
시뮬레이션 데이터
|
링크
|
제품환경증명서
|
(*) Brominated flame retardants (other than PBDEs, PBBs, HBCDDs) are intentionally used. Bromine (in homogeneous materials) in this product exceeds 1000 ppm.
Please contact our sales staff when ordering or inquiring the details about products on our website.
|

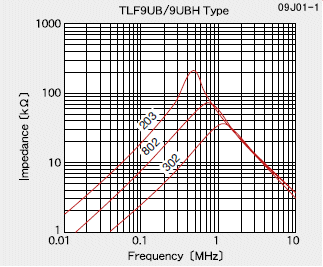

Impedance-Frequency Characteristics
|
