共模模式扼流线圈  [导线型共模模式扼流线圈(交流线路用)]

Specifications

供应体制 停产
共模模式电感值 22 mH min
外型尺寸 (mm) 23.0x22.0
直流电阻 (max) 1.7 Ω
额定电流 (max) 0.4 A
额定电压 (max) AC250 V
使用温度范围 -25 to +105 ℃
(Including-self-generated heat)
绝缘电阻值 (min) 100 MΩ
尺寸 (A) Max 23.0 mm
尺寸 (B) Max 22.0 mm
尺寸 (C) Max 17.5 mm
RoHS Compliance (10 subst.) Yes
适用焊接 方法 Wave
包装 Bulk 500pcs
Quantity
Previous Part Number :
Distributor Quantity Buy
Powered by netComponents

Appearance

Features

TLH10UA(B)型：普通形状(混合阻风门)

TLF9UA(H)K1型：小型尺寸

Main Applications

用于电视机、开关电源、数控设备、计算机及周边设备、各种测量仪器、
各种控制装置等的杂音端子电压、电源线路的噪声对策。

Document

Spec Sheet
Dimensions(Outline, Land Patterns, and so on)
Reliability Data
Packaging
Precautions
Notice for TAIYO YUDEN products
Catalog PDF(Product)
Part Number


Simulation data

Links

Management System Certification Status(ISO, IATF)
咨询


RoHS and REACH Certificate of Compliance

RoHS(Product)
(*) Brominated flame retardants (other than PBDEs, PBBs, HBCDDs) are intentionally used. Bromine (in homogeneous materials) in this product exceeds 1000 ppm.
记载内容的详细情况以及在您欲订购我司产品时，请向我司销售人员咨询相关情况。

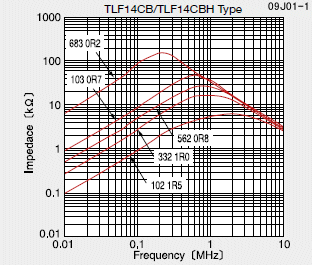

阻抗−频率特性例
