Specifications
| Status |
Discontinued |
| Operating Temp. Range |
-25 to +105 ℃ (Including-self-generated heat) |
| Dimension A |
5.3 ±0.5 mm |
| Dimension B |
5.0 ±0.3 mm |
| Dimension C |
2.7 ±0.2 mm |
| Dimension D |
1.5 ±0.2 mm |
| Insulation Resistance (min) |
100 MΩ |
| RoHS Compliance (10 subst.) |
Yes |
| REACH Compliance (251 subst.) |
Yes |
| Soldering |
Reflow |
| Standard Quantity |
Taping 2500pcs |
Quantity
Previous Part Number :
| Distributor |
Quantity |
Buy |
![]()
|
|
|
|
Appearance
|
Features
High stability due to pair wire windings
MC type : pins are molded into the base to create a singular structure
This item can be custom designed to meet customer requirements
|
Main Applications
Impedance transformers
Distribution transformers
|
|
Document
|
Simulation data
|
Links
|
RoHS and REACH Certificate of Compliance
|
(*) We apply "No" to this product because we are using ambiguous material regarding the inclusion of halogen (Br or Cl) in part of this product.
Please contact our sales staff when ordering or inquiring the details about products on our website.
|

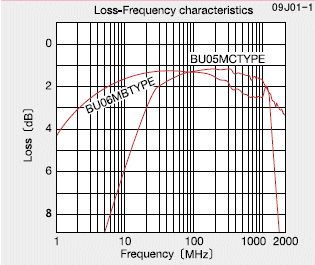

Loss-Frequency Characteristics
|
