COMMON MODE CHOKE COILS  [SMD Common Mode Choke Coils for DC and Signal Lines ]

Specifications

Status Discontinued
No. of Lines 3
Common Mode Impedance 1000 Ω typ at 100MHz
Case Size (mm) 9.0x7.4
DC Resistance (max) 0.18 Ω
Rated Current (max) 0.5 A
Rated Voltage (max) 50 V
Operating Temp. Range -25 to +105 ℃
(Including-self-generated heat)
Insulation Resistance (min) 100 MΩ
Dimension A 9.0 ±0.5 mm
Dimension B 7.4 ±0.2 mm
Dimension C 4.3 ±0.3 mm
RoHS Compliance (10 subst.) Yes
IEC62474 (Ver. D28.00) Compliance No(*)
Soldering Reflow
Standard Quantity Taping Embossed 1000pcs

Appearance

Features

Available in embossed tape and reel

Highly coupled coil construction ideal for common mode noise attenuation

Main Applications

Immunity against undesirable external line radiation fields and broadcast waves generated
by multifunction telephone sets, PBXs, and facsimile machines

Preventive measure against DC line noise in electronic equipment

Suppresses radiated emissions from secondary power supplies and signal lines on
AC adapters, battery chargers, and digital equipment

Excellent for reducing radiated noise in DVC (digital video cameras) and
DSC (digital still cameras)

Offers high speed differential mode noise attenuation in USB and IEEE1394 connectors
in personal computers, printers, scanners and other computer peripherals

Document

Spec Sheet
Dimensions(Outline, Land Patterns, and so on)
Packaging(extracted from Catalog)
Precautions(extracted from Catalog)
Notice for TAIYO YUDEN products
Catalog PDF(Product)
Part Number


Simulation data

Links

Inquiries


RoHS and REACH Certificate of Compliance

RoHS(Product)

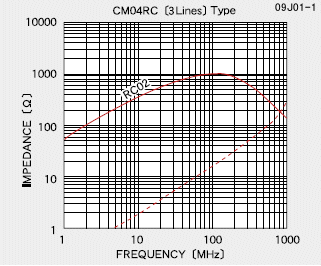

Impedance-Frequency Characteristics
(*) Brominated flame retardants (other than PBDEs, PBBs, HBCDDs) are intentionally used. Bromine (in homogeneous materials) in this product exceeds 1000 ppm.
