COMMON MODE CHOKE COILS  [Leaded Common Mode Choke Coils for DC and Signal Lines]

製品仕様

Status Discontinued
No. of Lines 2
Common Mode Impedance 1400 Ω typ at 100MHz
Common Mode Inductance 15 uH min
Case Size (mm) 9.5x5.5
DC Resistance (max) 60 mΩ
Rated Current (max) 1.5 A
Rated Voltage (max) 50 V
Operating Temp. Range -25 to +105 ℃
(Including-self-generated heat)
Insulation Resistance (min) 100 MΩ
Dimension A Max 9.5 mm
Dimension B Max 5.5 mm
Dimension C Max 10 mm
RoHS Compliance (10 subst.) Yes
Soldering Wave
Standard Quantity Bulk 1000pcs
在庫
旧品番 :
販売店 在庫 購入
Powered by netComponents

外観

特徴

Highly reliable, compact and lightweight

Easily inserted into the PCB

主な用途

TLF Type :
Countermeasure for noise in the low-frequency (AM) broad-casting band

Shields against radiated emissions in the broadcasting frequency for multi-functional
telephone sets. PBXs, faxes, etc.

製品資料

スペックシート
寸法図（外形、推奨ランド等）
信頼性
梱包
使用上の注意
当社製品に関するお断り
カタログPDF（製品分類）
品番表記法


シミュレーションデータ

リンク

Management System Certification Status(ISO, IATF)
Inquiries


製品環境証明書

RoHS(単品)
(*) Brominated flame retardants (other than PBDEs, PBBs, HBCDDs) are intentionally used. Bromine (in homogeneous materials) in this product exceeds 1000 ppm.
Please contact our sales staff when ordering or inquiring the details about products on our website.

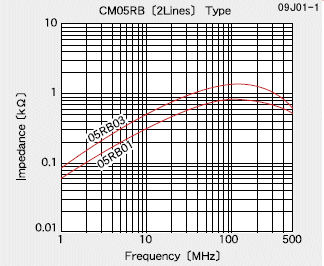

Impedance-Frequency Characteristics
