제품 사양
| Status |
Discontinued |
| No. of Lines |
2 |
| Common Mode Impedance |
2000 Ω typ at 80MHz |
| Common Mode Inductance |
15 uH min |
| Case Size (mm) |
11.0x11.0 |
| DC Resistance (max) |
40 mΩ |
| Rated Current (max) |
2.4 A |
| Rated Voltage (max) |
50 V |
| Operating Temp. Range |
-25 to +105 ℃
(Including-self-generated heat) |
| Insulation Resistance (min) |
100 MΩ |
| Dimension B |
Max φ11.0 mm |
| Dimension C |
Max 6 mm |
| RoHS Compliance (10 subst.) |
Yes |
| Halogen Free |
Yes |
| Soldering |
Wave |
| Standard Quantity |
Bulk 250pcs |
Quantity
이전품번 :
| Distributor |
Quantity |
Buy |
![]()
|
|
|
|
외관
|
특징
Highly reliable, compact and lightweight
Easily inserted into the PCB
|
주요 용도
TLF Type :
Countermeasure for noise in the low-frequency (AM) broad-casting band
Shields against radiated emissions in the broadcasting frequency for multi-functional
telephone sets. PBXs, faxes, etc.
|
|
제품 자료
|
시뮬레이션 데이터
|
링크
|
제품환경증명서
|
Please contact our sales staff when ordering or inquiring the details about products on our website.
|

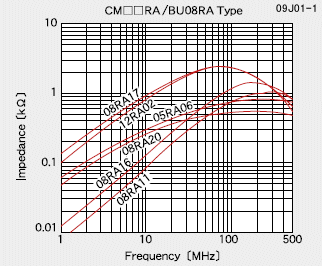

Impedance-Frequency Characteristics
|
