Specifications
| Status |
Discontinued |
| Inductance |
68 uH ± 10 % |
| Case Size (mm) |
14.0x17.0 |
| Rated Current (max) |
2.4 A |
| DC Resistance (max) |
70 mΩ |
| Q (min) |
50 |
| Self Resonant Frequency (min) |
4.4 MHz |
| Operating Temp. Range |
-25 to +105 ℃
(Including-self-generated heat) |
Temperature characteristic
(Inductance change) |
± 7 % |
| Dimension D |
Max φ14.0 mm |
| Dimension H2 |
Max 17.0 mm |
| Dimension d |
φ0.8 ±0.05 mm |
| Dimension F |
7.5 ±1.0 mm |
| Dimension l |
5.0 ±1.0 mm |
| Measuring Frequency |
2.52 MHz |
| RoHS Compliance (10 subst.) |
Yes |
| REACH Compliance (240 subst.) |
Yes |
| IEC62474 (Ver. D28.00) Compliance |
No(*) |
| Soldering |
Wave |
| Standard Quantity |
Taping 500pcs |
|
Appearance
|
Features
The LHL08~LHL10 series radial inductors are encapsulated in a resin
housing which adds to the stability of the mounted part on a printed
circuit board
The LHL08/LHL10 series are for high current applications
LHLC08/LHLC10 series which are encapsulated in a resin housing, are radial
leaded inductor for high current applications
|
Main Applications
Ideal for use as a power choke coil in general household appliances
(TVS, PDPTV, LCDTV, DVD, etc) and industrial equipment
Can also be used as a peaking coil in filtering applications
|
|
Document
|
Simulation data
|
Links
|
RoHS and REACH Certificate of Compliance
|
Temperature Characteristics

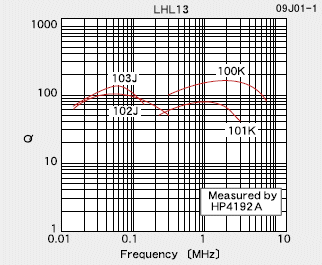

Q-Frequency Characteristics
|
(*) Brominated flame retardants (other than PBDEs, PBBs, HBCDDs) are intentionally used. Bromine (in homogeneous materials) in this product exceeds 1000 ppm.
Please contact our sales staff when ordering or inquiring the details about products on our website.
|
