製品仕様
| Status |
Discontinued |
| Common Mode Inductance |
1000 uH min |
| Case Size (mm) |
17.0x22.0 |
| DC Resistance (max) |
0.1 Ω |
| Rated Current (max) |
1.5 A |
| Rated Voltage (max) |
AC250 V |
| Operating Temp. Range |
-25 to +105 ℃
(Including-self-generated heat) |
| Insulation Resistance (min) |
100 MΩ |
| Dimension A |
Max 17.0 mm |
| Dimension B |
Max 22.0 mm |
| Dimension C |
Max 23.0 mm |
| RoHS Compliance (10 subst.) |
Yes |
| Soldering |
Wave |
| Standard Quantity |
Bulk 500pcs |
在庫
旧品番 :
| 販売店 |
在庫 |
購入 |
![]()
|
|
|
|
外観
|
特徴
TLH10UA(B)TYPE : Ordinary configuration (Hybrid choke)
TLF9UA(H)K1 TYPE : Small-sized configuration
|
主な用途
As a preventive measure against noise terminal voltage or power supply noise in
TV's SW power supplies, NC machines, computer systems, peripheral units,
measuring instruments, and controllers
|
|
製品資料
|
シミュレーションデータ
|
リンク
|
製品環境証明書
|
(*) Brominated flame retardants (other than PBDEs, PBBs, HBCDDs) are intentionally used. Bromine (in homogeneous materials) in this product exceeds 1000 ppm.
Please contact our sales staff when ordering or inquiring the details about products on our website.
|

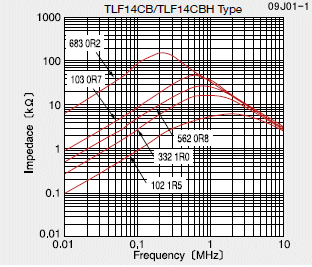

Impedance-Frequency Characteristics
|
