Specifications
| Status |
Phaseout |
| No. of Lines |
2 |
| Impedance (reference values) (min) |
40 kΩ at 700kHz |
| Common Mode Inductance |
8000 uH +100/-10% |
| Case Size (mm) |
15.0x17.0 |
| DC Resistance (max) |
3 Ω |
| Rated Current (max) |
0.3 A |
| Rated Voltage (max) |
50 V |
| Operating Temp. Range |
-25 to +105 ℃
(Including-self-generated heat) |
| Insulation Resistance (min) |
100 MΩ |
| Dimension A |
Max 15.0 mm |
| Dimension B |
Max 17.0 mm |
| Dimension C |
Max 12 mm |
| RoHS Compliance (10 subst.) |
Yes |
| REACH Compliance (240 subst.) |
Yes |
| IEC62474 (Ver. D28.00) Compliance |
No(*) |
| Soldering |
Wave |
| Standard Quantity |
Bulk 500pcs |
|
Appearance
|
Features
Highly reliable, compact and lightweight
Easily inserted into the PCB
|
Main Applications
TLF Type :
Countermeasure for noise in the low-frequency (AM) broad-casting band
Shields against radiated emissions in the broadcasting frequency for multi-functional
telephone sets. PBXs, faxes, etc.
|
|
Document
|
Simulation data
|
Links
|
RoHS and REACH Certificate of Compliance
|

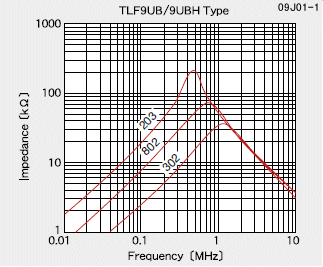

Impedance-Frequency Characteristics
|
(*) Brominated flame retardants (other than PBDEs, PBBs, HBCDDs) are intentionally used. Bromine (in homogeneous materials) in this product exceeds 1000 ppm.
Please contact our sales staff when ordering or inquiring the details about products on our website.
|
