Specifications
| Status |
Discontinued |
| Inductance |
3.9 uH ± 10 % |
| Case Size (mm) |
4.4x8.0 |
| Rated Current (max) |
2.3 A |
| Saturation Current (max) |
3 A (⊿L=10%) |
| Temperature Rise Current (max) |
2.3 A (⊿T=40℃) |
| DC Resistance (max) |
72 mΩ |
| Operating Temp. Range |
-25 to +105 ℃
(Including-self-generated heat) |
| Dimension D |
Max φ4.4 mm |
| Dimension L |
Max 8.0 mm |
| Dimension d |
φ0.65 ±0.05 mm |
| Measuring Frequency |
7.96 MHz |
| RoHS Compliance (10 subst.) |
Yes |
| REACH Compliance (247 subst.) |
Yes |
| Halogen Free |
Yes |
| Soldering |
Wave |
| Standard Quantity |
Taping 2000pcs |
|
Appearance
|
Features
Extremely reliable inductors that are ideal for automatic insertion
Highly efficient automated production processes can provide high
quality inductors in large volumes
Wide selection of configurations including axial leaded, formed radial leads
and bulk products to meet most manufacturing needs

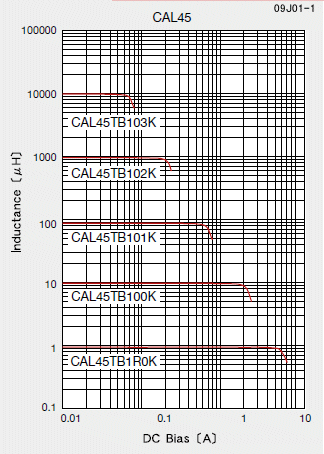

CAL45 is high current type, and has superior DC bias characteristics
|
Main Applications
Use for TVs, DVD, audio equipment, communication instrument,
tuner, and general electrical instrument
For DC/DC converter (LCD TV, PDP TV, CTV, DVD etc.) (CAL45 Series)
|
|
Document
|
Simulation data
|
Links
|
RoHS and REACH Certificate of Compliance
|
|
|
The saturation current value is the DC current value having inductance decrease down to 10%. (at 20℃)
The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃)
Please contact our sales staff when ordering or inquiring the details about products on our website.
|
