产品规格
| Status |
Discontinued |
| Inductance |
33 mH ± 5 % |
| Case Size (mm) |
11.0x14.0 |
| Rated Current (max) |
56 mA |
| DC Resistance (max) |
76 Ω |
| Q (min) |
40 |
| Self Resonant Frequency (min) |
0.14 MHz |
| Operating Temp. Range |
-25 to +105 ℃
(Including-self-generated heat) |
Temperature characteristic
(Inductance change) |
± 7 % |
| Dimension D |
Max φ11.0 mm |
| Dimension H2 |
Max 14.0 mm |
| Dimension d |
φ0.6 ±0.05 mm |
| Dimension F |
5.0 ±1.0 mm |
| Dimension l |
5.0 ±1.0 mm |
| Measuring Frequency |
L : 1kHz Q : 0.0796MHz |
| RoHS Compliance (10 subst.) |
Yes |
| REACH Compliance (251 subst.) |
Yes |
| Soldering |
Wave |
| Standard Quantity |
Taping 500pcs |
Quantity
旧型号 :
| Distributor |
Quantity |
Buy |
![]()
|
|
|
|
外观
|
特征
The LHL08~LHL10 series radial inductors are encapsulated in a resin
housing which adds to the stability of the mounted part on a printed
circuit board
The LHL08/LHL10 series are for high current applications
LHLC08/LHLC10 series which are encapsulated in a resin housing, are radial
leaded inductor for high current applications
|
主要用途
Ideal for use as a power choke coil in general household appliances
(TVS, PDPTV, LCDTV, DVD, etc) and industrial equipment
Can also be used as a peaking coil in filtering applications
|
|
产品資料
|
模拟数据
|
链接
|
关于产品的环保证明书
|
(*) Brominated flame retardants (other than PBDEs, PBBs, HBCDDs) are intentionally used. Bromine (in homogeneous materials) in this product exceeds 1000 ppm.
Please contact our sales staff when ordering or inquiring the details about products on our website.
|
Temperature Characteristics

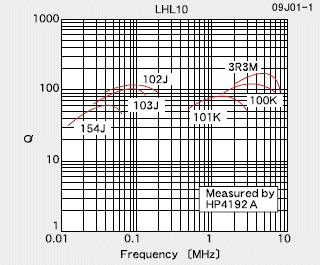

Q-Frequency Characteristics
|
