INDUCTORS  [Radial Leaded Inductors[LHLC]]

Specifications

Status Discontinued
Inductance 100 mH ± 5 %
Case Size (mm) 11.0x14.0
Rated Current (max) 38 mA
DC Resistance (max) 240 Ω
Q (min) 30
Self Resonant Frequency (min) 0.085 MHz
Operating Temp. Range -25 to +105 ℃
(Including-self-generated heat)
Temperature characteristic
(Inductance change)		 ± 7 %
Dimension D Max φ11.0 mm
Dimension H2 Max 14.0 mm
Dimension d φ0.6 ±0.05 mm
Dimension F 5.0 ±1.0 mm
Dimension l 5.0 ±1.0 mm
Measuring Frequency L : 1kHz Q : 0.0252MHz
RoHS Compliance (10 subst.) Yes
REACH Compliance (242 subst.) Yes
IEC62474 (Ver. D29.00) Compliance No(*)
Soldering Wave
Standard Quantity Taping 500pcs

Appearance

Features

The LHL08~LHL10 series radial inductors are encapsulated in a resin
housing which adds to the stability of the mounted part on a printed
circuit board

The LHL08/LHL10 series are for high current applications

LHLC08/LHLC10 series which are encapsulated in a resin housing, are radial
leaded inductor for high current applications

Main Applications

Ideal for use as a power choke coil in general household appliances
(TVS, PDPTV, LCDTV, DVD, etc) and industrial equipment

Can also be used as a peaking coil in filtering applications

For DC/DC converter (LCD TV, PDP TV, CTV, DVD etc.) (LHLC Series)

Document

Spec Sheet
Dimensions(Outline, Land Patterns, and so on)
Reliability Data(extracted from Catalog)
Packaging(extracted from Catalog)
Precautions(extracted from Catalog)
Notice for TAIYO YUDEN products
Part Number


Simulation data

Links

Inquiries


RoHS and REACH Certificate of Compliance

RoHS(Product)
REACH(Product)

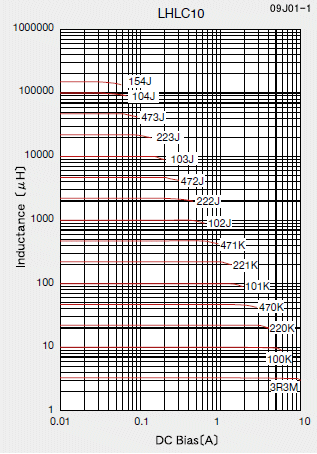

DC Bias Characteristics
(*) Brominated flame retardants (other than PBDEs, PBBs, HBCDDs) are intentionally used. Bromine (in homogeneous materials) in this product exceeds 1000 ppm.
