产品规格
| Status |
Phaseout |
| Common Mode Inductance |
10 mH +100/-10% |
| Case Size (mm) |
11.0x17.0 |
| DC Resistance (max) |
4.5 Ω |
| Rated Current (max) |
0.23 A |
| Rated Voltage (max) |
AC250 V |
| Operating Temp. Range |
-25 to +105 ℃
(Including-self-generated heat) |
| Insulation Resistance (min) |
100 MΩ |
| Dimension A |
Max 11.0 mm |
| Dimension B |
Max 17.0 mm |
| Dimension C |
Max 16.0 mm |
| RoHS Compliance (10 subst.) |
Yes |
| REACH Compliance (251 subst.) |
Yes |
| Soldering |
Wave |
| Standard Quantity |
Bulk 500pcs |
Quantity
旧型号 :
| Distributor |
Quantity |
Buy |
![]()
|
|
|
|
外观
|
特征
TLH10UA(B)TYPE : Ordinary configuration (Hybrid choke)
TLF9UA(H)K1 TYPE : Small-sized configuration
|
主要用途
As a preventive measure against noise terminal voltage or power supply noise in
TV's SW power supplies, NC machines, computer systems, peripheral units,
measuring instruments, and controllers
|
|
产品資料
|
模拟数据
|
链接
|
关于产品的环保证明书
|
(*) Brominated flame retardants (other than PBDEs, PBBs, HBCDDs) are intentionally used. Bromine (in homogeneous materials) in this product exceeds 1000 ppm.
Please contact our sales staff when ordering or inquiring the details about products on our website.
|

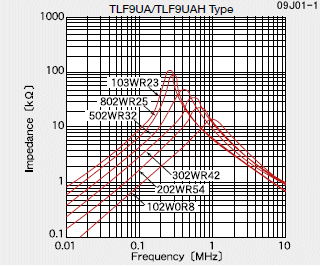

Impedance-Frequency Characteristics
|
