Specifications
| Status |
Phaseout |
| Common Mode Inductance |
2000 uH +100/-10% |
| Case Size (mm) |
15.0x17.0 |
| DC Resistance (max) |
1 Ω |
| Rated Current (max) |
0.54 A |
| Rated Voltage (max) |
AC250 V |
| Operating Temp. Range |
-25 to +105 ℃
(Including-self-generated heat) |
| Insulation Resistance (min) |
100 MΩ |
| Dimension A |
Max 15.0 mm |
| Dimension B |
Max 17.0 mm |
| Dimension C |
Max 12.0 mm |
| RoHS Compliance (10 subst.) |
Yes |
| REACH Compliance (240 subst.) |
Yes |
| IEC62474 (Ver. D28.00) Compliance |
No(*) |
| Soldering |
Wave |
| Standard Quantity |
Bulk 500pcs |
|
Appearance
|
Features
TLH10UA(B)TYPE : Ordinary configuration (Hybrid choke)
TLF9UA(H)K1 TYPE : Small-sized configuration
|
Main Applications
As a preventive measure against noise terminal voltage or power supply noise in
TV's SW power supplies, NC machines, computer systems, peripheral units,
measuring instruments, and controllers
|
|
Document
|
Simulation data
|
Links
|
RoHS and REACH Certificate of Compliance
|

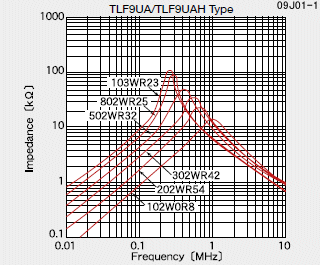

Impedance-Frequency Characteristics
|
