Specifications
| Status |
Phaseout |
| No. of Lines |
2 |
| Common Mode Impedance |
1000 Ω typ at 60MHz |
| Case Size (mm) |
5.3x5.0 |
| DC Resistance (max) |
0.12 Ω |
| Rated Current (max) |
1 A |
| Rated Voltage (max) |
50 V |
| Operating Temp. Range |
-25 to +105 ℃
(Including-self-generated heat) |
| Insulation Resistance (min) |
100 MΩ |
| Dimension A |
5.3 ±0.5 mm |
| Dimension B |
5.0 ±0.3 mm |
| Dimension C |
2.7 ±0.2 mm |
| RoHS Compliance (10 subst.) |
Yes |
| REACH Compliance (247 subst.) |
Yes |
| Soldering |
Reflow |
| Standard Quantity |
Taping Embossed 2500pcs |
|
Appearance
|
Features
Available in embossed tape and reel
Highly coupled coil construction ideal for common mode noise attenuation
|
Main Applications
Immunity against undesirable external line radiation fields and broadcast waves generated
by multifunction telephone sets, PBXs, and facsimile machines
Preventive measure against DC line noise in electronic equipment
Suppresses radiated emissions from secondary power supplies and signal lines on
AC adapters, battery chargers, and digital equipment
Excellent for reducing radiated noise in DVC (digital video cameras) and
DSC (digital still cameras)
Offers high speed differential mode noise attenuation in USB and IEEE1394 connectors
in personal computers, printers, scanners and other computer peripherals
|
|
Document
|
Simulation data
|
Links
|
RoHS and REACH Certificate of Compliance
|

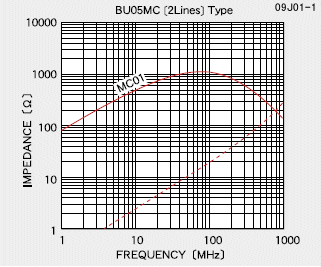

Impedance-Frequency Characteristics
|
(*) We apply "No" to this product because we are using ambiguous material regarding the inclusion of halogen (Br or Cl) in part of this product.
