INDUCTORS  [Axial Leaded Inductors]

Specifications

Status Discontinued
Inductance 10 uH ± 10 %
Case Size (mm) 4.4x8.0
Rated Current (max) 1.7 A
Saturation Current (max) 1.7 A (⊿L=10%)
Temperature Rise Current (max) 1.8 A (⊿T=40℃)
DC Resistance (max) 0.14 Ω
Operating Temp. Range -25 to +105 ℃
(Including-self-generated heat)
Dimension D Max φ4.4 mm
Dimension L Max 8.0 mm
Dimension d φ0.65 ±0.05 mm
Measuring Frequency 2.52 MHz
RoHS Compliance (10 subst.) Yes
REACH Compliance (240 subst.) Yes
IEC62474 (Ver. D28.00) Compliance Yes
Halogen Free Yes
Soldering Wave
Standard Quantity Taping 2000pcs

Appearance

Features

Extremely reliable inductors that are ideal for automatic insertion

Highly efficient automated production processes can provide high
quality inductors in large volumes

Wide selection of configurations including axial leaded, formed radial leads
and bulk products to meet most manufacturing needs

CAL45 is high current type, and has superior DC bias characteristics

Main Applications

Use for TVs, DVD, audio equipment, communication instrument,
tuner, and general electrical instrument

For DC/DC converter (LCD TV, PDP TV, CTV, DVD etc.) (CAL45 Series)

Document



Simulation data

Links



RoHS and REACH Certificate of Compliance

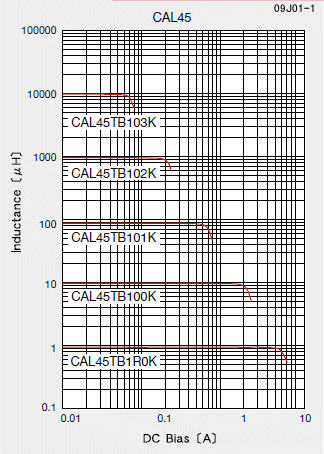

DC Bias Characteristics
The saturation current value is the DC current value having inductance decrease down to 10%. (at 20℃)
The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃)
