제품 사양
| Status |
Discontinued |
| Inductance |
560 uH ± 10 % |
| Case Size (mm) |
4.4x8.0 |
| Rated Current (max) |
0.24 A |
| Saturation Current (max) |
0.25 A (⊿L=10%) |
| Temperature Rise Current (max) |
0.24 A (⊿T=40℃) |
| DC Resistance (max) |
7 Ω |
| Operating Temp. Range |
-25 to +105 ℃
(Including-self-generated heat) |
| Dimension D |
Max φ4.4 mm |
| Dimension L |
Max 8.0 mm |
| Dimension H2 |
Max 14.0 mm |
| Dimension d |
φ0.65 ±0.05 mm |
| Dimension F |
5.0 ±1.0 mm |
| Measuring Frequency |
0.796 MHz |
| RoHS Compliance (10 subst.) |
Yes |
| REACH Compliance (247 subst.) |
Yes |
| Halogen Free |
Yes |
| Soldering |
Wave |
| Standard Quantity |
Taping 1500pcs |
|
외관
|
특징
Extremely reliable inductors that are ideal for automatic insertion
Highly efficient automated production processes can provide high
quality inductors in large volumes
Wide selection of configurations including axial leaded, formed radial leads
and bulk products to meet most manufacturing needs

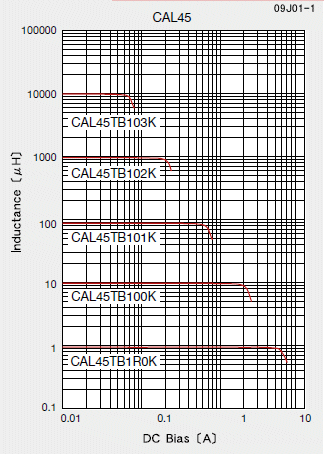

CAL45 is high current type, and has superior DC bias characteristics
|
주요 용도
Use for TVs, DVD, audio equipment, communication instrument,
tuner, and general electrical instrument
For DC/DC converter (LCD TV, PDP TV, CTV, DVD etc.) (CAL45 Series)
|
|
제품 자료
|
시뮬레이션 데이터
|
링크
|
제품환경증명서
|
|
|
The saturation current value is the DC current value having inductance decrease down to 10%. (at 20℃)
The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃)
