COMMON MODE CHOKE COILS  [Leaded Common Mode Choke Coils for DC and Signal Lines]

Specifications

Status Discontinued
No. of Lines 2
Common Mode Impedance 500 Ω typ at 200MHz
Common Mode Inductance 6 uH min
Case Size (mm) 11.0x11.0
DC Resistance (max) 20 mΩ
Rated Current (max) 5.5 A
Rated Voltage (max) 50 V
Operating Temp. Range -25 to +105 ℃
(Including-self-generated heat)
Insulation Resistance (min) 100 MΩ
Dimension B Max φ11.0 mm
Dimension C Max 6 mm
RoHS Compliance (10 subst.) Yes
IEC62474 (Ver. D28.00) Compliance Yes
Halogen Free Yes
Soldering Wave
Standard Quantity Bulk 250pcs

Appearance

Features

Highly reliable, compact and lightweight

Easily inserted into the PCB

Main Applications

TLF Type :
Countermeasure for noise in the low-frequency (AM) broad-casting band

Shields against radiated emissions in the broadcasting frequency for multi-functional
telephone sets. PBXs, faxes, etc.

Document



Simulation data

Links



RoHS and REACH Certificate of Compliance

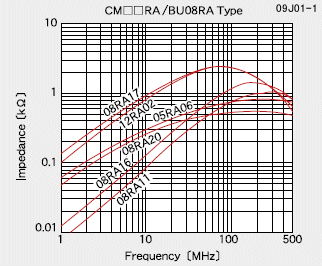

Impedance-Frequency Characteristics
