COMMON MODE CHOKE COILS  [Leaded Common Mode Choke Coils for DC and Signal Lines]

Specifications

Status Discontinued
No. of Lines 2
Common Mode Impedance 2500 Ω typ at 30MHz
Common Mode Inductance 40 uH min
Case Size (mm) 13.0x9.5
DC Resistance (max) 40 mΩ
Rated Current (max) 2 A
Rated Voltage (max) 50 V
Operating Temp. Range -25 to +105 ℃
(Including-self-generated heat)
Insulation Resistance (min) 100 MΩ
Dimension A Max 13.0 mm
Dimension B Max 9.5 mm
Dimension C Max 14.5 mm
RoHS Compliance (10 subst.) Yes
IEC62474 (Ver. D28.00) Compliance No(*)
Soldering Wave
Standard Quantity Bulk 500pcs

Appearance

Features

Highly reliable, compact and lightweight

Easily inserted into the PCB

Main Applications

TLF Type :
Countermeasure for noise in the low-frequency (AM) broad-casting band

Shields against radiated emissions in the broadcasting frequency for multi-functional
telephone sets. PBXs, faxes, etc.

Document



Simulation data

Links



RoHS and REACH Certificate of Compliance

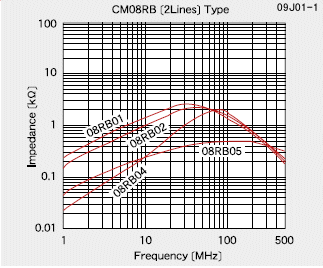

Impedance-Frequency Characteristics
(*) We apply "No" to this product because we are using ambiguous material regarding the inclusion of halogen (Br or Cl) in part of this product.
Please contact our sales staff when ordering or inquiring the details about products on our website.
