Specifications
| Status |
Discontinued |
| No. of Lines |
2 |
| Common Mode Impedance |
450 Ω typ at 100MHz |
| Common Mode Inductance |
6 uH min |
| Case Size (mm) |
13.0x9.5 |
| DC Resistance (max) |
20 mΩ |
| Rated Current (max) |
4 A |
| Rated Voltage (max) |
50 V |
| Operating Temp. Range |
-25 to +105 ℃
(Including-self-generated heat) |
| Insulation Resistance (min) |
100 MΩ |
| Dimension A |
Max 13.0 mm |
| Dimension B |
Max 9.5 mm |
| Dimension C |
Max 14.5 mm |
| RoHS Compliance (10 subst.) |
Yes |
| IEC62474 (Ver. D28.00) Compliance |
No(*) |
| Soldering |
Wave |
| Standard Quantity |
Bulk 500pcs |
|
Appearance
|
Features
Highly reliable, compact and lightweight
Easily inserted into the PCB
|
Main Applications
TLF Type :
Countermeasure for noise in the low-frequency (AM) broad-casting band
Shields against radiated emissions in the broadcasting frequency for multi-functional
telephone sets. PBXs, faxes, etc.
|
|
Document
|
Simulation data
|
Links
|
RoHS and REACH Certificate of Compliance
|

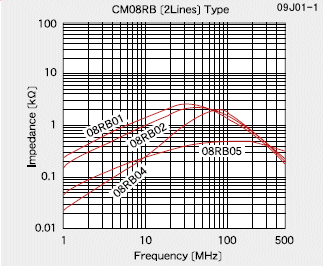

Impedance-Frequency Characteristics
|
(*) We apply "No" to this product because we are using ambiguous material regarding the inclusion of halogen (Br or Cl) in part of this product.
Please contact our sales staff when ordering or inquiring the details about products on our website.
|
