FERRITE BEAD INDUCTORS  [Leaded Ferrite Bead Inductors (FB series A type)]

Specifications

Status Discontinued
Impedance 35 Ω min
Z Measuring Frequency 100 MHz
Case Size (mm) 2.5x4.5
Rated Current (max) 7 A
DC Resistance (max) 10 mΩ
Operating Temp. Range -25 to +85 ℃
(Including-self-generated heat)
Insulation Resistance (min) 1 MΩ
Dimension D φ2.5 ±0.2 mm
Dimension L 4.5 ±0.3 mm
Dimension d φ0.65 ±0.05 mm
RoHS Compliance (10 subst.) Yes
REACH Compliance (240 subst.) Yes
IEC62474 (Ver. D28.00) Compliance Yes(*)
Soldering Wave
Standard Quantity Taping 2000pcs

Appearance

Features

Use of high loss ferrite material

Easy mounting on PC boards

Available in a wide range of values and configurations to suit most applications

Main Applications

Waveform correction of digital signals from digital equipment and absorption
of high-frequency noise from data lines

Document



Simulation data

Links



RoHS and REACH Certificate of Compliance

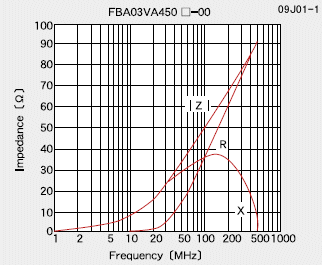

Impedance-Frequency Characteristics
(*) Chlorine resulting from bisphenol A type epoxy resin exceeds 1000ppm. ; Since chlorine is not from source of the CFR / PVC or PVC copolymers, we apply "Yes" to this product by the definition of low-halogen, JS-709A.
