FERRITE BEAD INDUCTORS  [Leaded Ferrite Bead Inductors (FB series A type)]

Specifications

Status Discontinued
Impedance 45 Ω min
Z Measuring Frequency 50 MHz
Case Size (mm) 3.5x4.5
Rated Current (max) 7 A
DC Resistance (max) 10 mΩ
Operating Temp. Range -25 to +85 ℃
(Including-self-generated heat)
Insulation Resistance (min) 1 MΩ
Dimension D φ3.5 ±0.2 mm
Dimension L 4.5 ±0.3 mm
Dimension d φ0.65 ±0.05 mm
RoHS Compliance (10 subst.) Yes
REACH Compliance (242 subst.) Yes
IEC62474 (Ver. D29.00) Compliance Yes(*)
Soldering Wave
Standard Quantity Taping 3000pcs

Appearance

Features

Use of high loss ferrite material

Easy mounting on PC boards

Available in a wide range of values and configurations to suit most applications

Main Applications

Waveform correction of digital signals from digital equipment and absorption
of high-frequency noise from data lines

Document

Spec Sheet
Dimensions(Outline, Land Patterns, and so on)
Reliability Data(extracted from Catalog)
Packaging(extracted from Catalog)
Precautions(extracted from Catalog)
Notice for TAIYO YUDEN products
Part Number


Simulation data

Links

Conditions for measuring S-parameter
Inquiries


RoHS and REACH Certificate of Compliance

RoHS(Product)
REACH(Product)

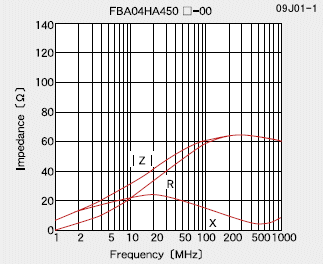

Impedance-Frequency Characteristics
(*) Chlorine resulting from bisphenol A type epoxy resin exceeds 1000ppm. ; Since chlorine is not from source of the CFR / PVC or PVC copolymers, we apply "Yes" to this product by the definition of low-halogen, JS-709A.
