FERRITE BEAD INDUCTORS  [Leaded Ferrite Bead Inductors (FB series A type)]

제품 사양

Status Discontinued
Impedance 90 Ω min
Z Measuring Frequency 50 MHz
Case Size (mm) 3.5x9.0
Rated Current (max) 7 A
DC Resistance (max) 10 mΩ
Operating Temp. Range -25 to +85 ℃
(Including-self-generated heat)
Insulation Resistance (min) 1 MΩ
Dimension D φ3.5 ±0.2 mm
Dimension L 9.0 ±0.5 mm
Dimension d φ0.65 ±0.05 mm
RoHS Compliance (10 subst.) Yes
REACH Compliance (251 subst.) Yes
Soldering Wave
Standard Quantity Taping 1000pcs
Quantity
이전품번 :
Distributor Quantity Buy
Powered by netComponents

외관

특징

Use of high loss ferrite material

Easy mounting on PC boards

Available in a wide range of values and configurations to suit most applications

주요 용도

Waveform correction of digital signals from digital equipment and absorption
of high-frequency noise from data lines

제품 자료

스펙 시트
치수(외형, 권장 랜드, 등)
신뢰성
포장
사용상의 주의
당사제품에 관한 주의사항
Part Number


시뮬레이션 데이터

링크

Conditions for measuring S-parameter
Management System Certification Status(ISO, IATF)
Inquiries


제품환경증명서

RoHS(Product)
REACH(Product)
(*) Chlorine resulting from bisphenol A type epoxy resin exceeds 1000ppm. ; Since chlorine is not from source of the CFR / PVC or PVC copolymers, we apply "Yes" to this product by the definition of low-halogen, JS-709A.
Please contact our sales staff when ordering or inquiring the details about products on our website.

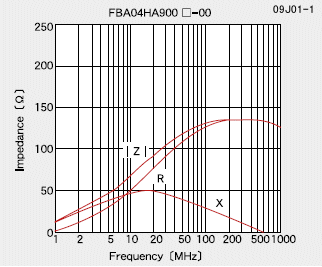

Impedance-Frequency Characteristics
