产品规格
| Status |
Discontinued |
| Inductance |
6.8 uH ± 10 % |
| Case Size (mm) |
2.3x3.4 |
| Rated Current (max) |
0.175 A |
| DC Resistance (max) |
2 Ω |
| Q (min) |
40 |
| Self Resonant Frequency (min) |
28 MHz |
| Operating Temp. Range |
-25 to +105 ℃
(Including-self-generated heat) |
Temperature characteristic
(Inductance change) |
± 5 % |
| Dimension D |
Max φ2.3 mm |
| Dimension L |
Max 3.4 mm |
| Dimension d |
φ0.5 ±0.05 mm |
| Measuring Frequency |
7.96 MHz |
| RoHS Compliance (10 subst.) |
Yes |
| Soldering |
Wave |
| Standard Quantity |
Taping 2000pcs |
Quantity
旧型号 :
| Distributor |
Quantity |
Buy |
![]()
|
|
|
|
外观
|
特征
Extremely reliable inductors that are ideal for automatic insertion
Highly efficient automated production processes can provide high
quality inductors in large volumes
Wide selection of configurations including axial leaded, formed radial leads
and bulk products to meet most manufacturing needs
|
主要用途
Use for TVs, DVD, audio equipment, communication instrument,
tuner, and general electrical instrument
|
|
产品資料
|
模拟数据
|
链接
|
关于产品的环保证明书
|
Please contact our sales staff when ordering or inquiring the details about products on our website.
|
Temperature Characteristics

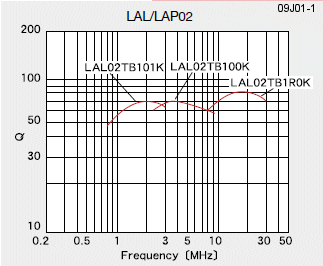

Q-Frequency Characteristics
|
