Specifications
| Status |
Discontinued |
| Inductance |
0.27 uH ± 10 % |
| Case Size (mm) |
2.3x3.4 |
| Rated Current (max) |
0.38 A |
| DC Resistance (max) |
0.43 Ω |
| Q (min) |
35 |
| Self Resonant Frequency (min) |
410 MHz |
| Operating Temp. Range |
-25 to +105 ℃
(Including-self-generated heat) |
Temperature characteristic
(Inductance change) |
± 5 % |
| Dimension D |
Max φ2.3 mm |
| Dimension L |
Max 3.4 mm |
| Dimension d |
φ0.5 ±0.05 mm |
| Measuring Frequency |
25.2 MHz |
| RoHS Compliance (10 subst.) |
Yes |
| Soldering |
Wave |
| Standard Quantity |
Taping 2000pcs |
|
Appearance
|
Features
Extremely reliable inductors that are ideal for automatic insertion
Highly efficient automated production processes can provide high
quality inductors in large volumes
Wide selection of configurations including axial leaded, formed radial leads
and bulk products to meet most manufacturing needs
|
Main Applications
Use for TVs, DVD, audio equipment, communication instrument,
tuner, and general electrical instrument
|
|
Document
|
Simulation data
|
Links
|
RoHS and REACH Certificate of Compliance
|

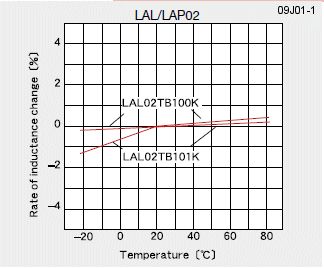

Temperature Characteristics

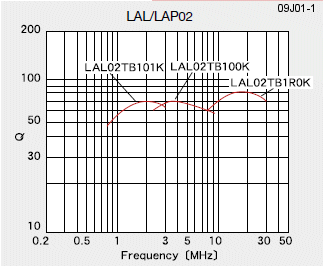

Q-Frequency Characteristics
|
