INDUCTORS  [Axial Leaded Inductors[LAP]]

Specifications

Status Discontinued
Inductance 22 uH ± 10 %
Case Size (mm) 2.3x3.4
Rated Current (max) 0.13 A
DC Resistance (max) 3.4 Ω
Q (min) 40
Self Resonant Frequency (min) 17 MHz
Operating Temp. Range -25 to +105 ℃
(Including-self-generated heat)
Temperature characteristic
(Inductance change)
± 5 %
Dimension D Max φ2.3 mm
Dimension L Max 3.4 mm
Dimension d φ0.45 ±0.05 mm
Measuring Frequency 2.52 MHz
RoHS Compliance (10 subst.) Yes
Soldering Wave
Standard Quantity Taping 2000pcs

Appearance

Features

Extremely reliable inductors that are ideal for automatic insertion

Highly efficient automated production processes can provide high
quality inductors in large volumes

Wide selection of configurations including axial leaded, formed radial leads
and bulk products to meet most manufacturing needs

Main Applications

Use for TVs, DVD, audio equipment, communication instrument,
tuner, and general electrical instrument

Document



Simulation data

Links



RoHS and REACH Certificate of Compliance

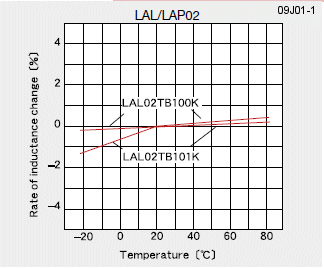

Temperature Characteristics

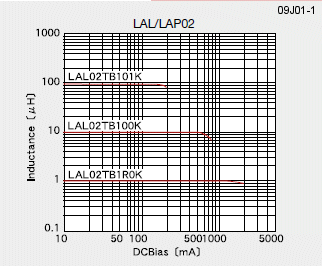

DC Bias Characteristics

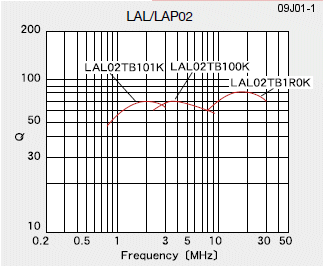

Q-Frequency Characteristics
