Specifications
| Status |
Discontinued |
| Inductance |
3300 uH ± 5 % |
| Case Size (mm) |
14.0x17.0 |
| Rated Current (max) |
0.33 A |
| DC Resistance (max) |
3.4 Ω |
| Q (min) |
40 |
| Self Resonant Frequency (min) |
0.6 MHz |
| Operating Temp. Range |
-25 to +105 ℃
(Including-self-generated heat) |
Temperature characteristic
(Inductance change) |
± 7 % |
| Dimension D |
Max φ14.0 mm |
| Dimension H2 |
Max 17.0 mm |
| Dimension d |
φ0.8 ±0.05 mm |
| Dimension F |
7.5 ±1.0 mm |
| Dimension l |
5.0 ±1.0 mm |
| Measuring Frequency |
0.252 MHz |
| RoHS Compliance (10 subst.) |
Yes |
| REACH Compliance (240 subst.) |
Yes |
| IEC62474 (Ver. D28.00) Compliance |
No(*) |
| Soldering |
Wave |
| Standard Quantity |
Taping 500pcs |
|
Appearance
|
Features
The LHL08~LHL10 series radial inductors are encapsulated in a resin
housing which adds to the stability of the mounted part on a printed
circuit board
The LHL08/LHL10 series are for high current applications
LHLC08/LHLC10 series which are encapsulated in a resin housing, are radial
leaded inductor for high current applications
|
Main Applications
Ideal for use as a power choke coil in general household appliances
(TVS, PDPTV, LCDTV, DVD, etc) and industrial equipment
Can also be used as a peaking coil in filtering applications
|
|
Document
|
Simulation data
|
Links
|
RoHS and REACH Certificate of Compliance
|
Temperature Characteristics

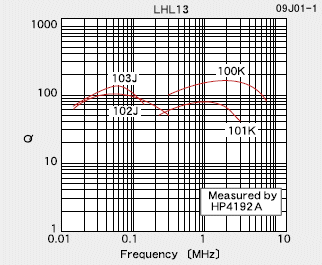

Q-Frequency Characteristics
|
(*) Brominated flame retardants (other than PBDEs, PBBs, HBCDDs) are intentionally used. Bromine (in homogeneous materials) in this product exceeds 1000 ppm.
