Specifications
| Status |
Phaseout |
| Common Mode Inductance |
8000 uH +100/-10% |
| Case Size (mm) |
11.0x17.0 |
| DC Resistance (max) |
4 Ω |
| Rated Current (max) |
0.25 A |
| Rated Voltage (max) |
AC250 V |
| Operating Temp. Range |
-25 to +105 ℃
(Including-self-generated heat) |
| Insulation Resistance (min) |
100 MΩ |
| Dimension A |
Max 11.0 mm |
| Dimension B |
Max 17.0 mm |
| Dimension C |
Max 16.0 mm |
| RoHS Compliance (10 subst.) |
Yes |
| REACH Compliance (240 subst.) |
Yes |
| IEC62474 (Ver. D28.00) Compliance |
No(*) |
| Soldering |
Wave |
| Standard Quantity |
Bulk 500pcs |
|
Appearance
|
Features
TLH10UA(B)TYPE : Ordinary configuration (Hybrid choke)
TLF9UA(H)K1 TYPE : Small-sized configuration
|
Main Applications
As a preventive measure against noise terminal voltage or power supply noise in
TV's SW power supplies, NC machines, computer systems, peripheral units,
measuring instruments, and controllers
|
|
Document
|
Simulation data
|
Links
|
RoHS and REACH Certificate of Compliance
|

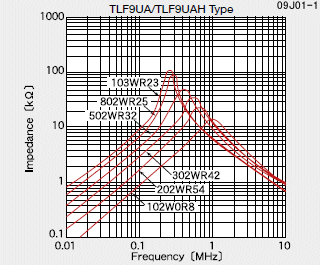

Impedance-Frequency Characteristics
|
(*) Brominated flame retardants (other than PBDEs, PBBs, HBCDDs) are intentionally used. Bromine (in homogeneous materials) in this product exceeds 1000 ppm.
Please contact our sales staff when ordering or inquiring the details about products on our website.
|
